100V 7-Channel Battery Pack Aging Machine
COENG's 100V battery pack aging machine is a seven-channel charge-discharge tester built for lithium-ion battery pack production. With 0–10A charging, 0–20A discharging and a specified discharge power of ≤1400W, it supports capacity measurement and charging/discharging protection checks for packs matched to its operating limits.
This programmable battery pack tester combines CC/CV charging with constant-current discharge. Test recipes support up to 100 steps per cycle and 1–999 cycles, with voltage, current, time and protection-related cut-off settings as applicable to each mode. Four-wire voltage and current detection supports reliable battery pack evaluation.

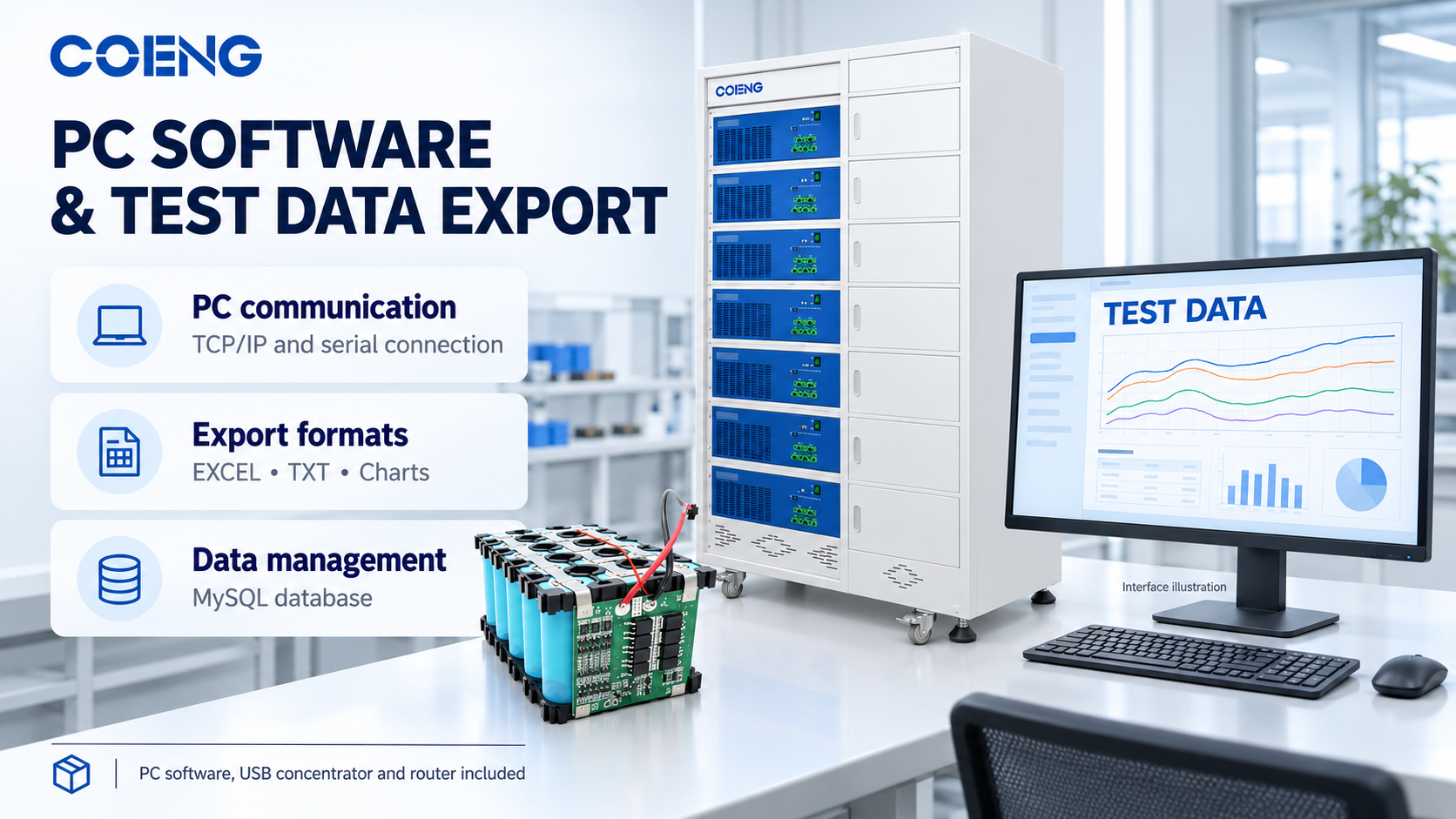

PC software provides TCP/IP and serial communication, with MySQL data management and EXCEL, TXT and chart outputs. The 900 × 600 × 1900 mm cabinet contains seven channels and is specified for AC 380V, 7kW input. A USB concentrator and router are included according to the supplied equipment information.
For equipment importers, battery pack manufacturers and production-line integrators, this battery pack test station supports assembly quality control. Send your full-charge voltage, pack capacity, required test current and daily throughput to request a configuration review and quotation.
Key Features
- Seven-channel cabinet: A floor-standing configuration for battery pack production testing.
- Defined test ranges: 0–100V voltage measurement, 0–10A charging and 0–20A discharging, with a specified discharge-power limit of ≤1400W.
- Programmable recipes: Up to 100 steps per cycle and 1–999 cycles for repeatable test procedures.
- Charge and discharge assessment: CC/CV charging, constant-current discharge, capacity measurement and protection cut-off checks.
- PC data management: TCP/IP and serial communication, MySQL storage and EXCEL, TXT and chart outputs.
Technical Specifications
| Parameter | Specification |
|---|
| Voltage measurement range | 0–100V |
| Charging current range | 0–10A |
| Discharging current range | 0–20A |
| Specified discharge power | ≤1400W |
| Channels per cabinet | 7 |
| Charging mode | Constant current / constant voltage (CC/CV) |
| Discharging mode | Constant current (CC) |
| Voltage accuracy | ±(0.2% of reading + 0.2% of range) |
| Charging current accuracy | ±(0.2% of reading + 0.2% of range) |
| Discharging current accuracy | ±(0.2% of reading + 0.2% of range) |
| Minimum CV cut-off current | 10mA |
| Cycle setting range | 1–999 cycles |
| Steps per cycle | 100 |
| Timing range | 0–999 hours per step |
| Data recording interval | ≥5 seconds |
| Voltage and current detection | Four-wire connection |
| Charging cut-off conditions | Voltage, current, relative time and overcharge protection |
| Discharging cut-off conditions | Voltage, relative time and over-discharge protection |
| PC communication | TCP/IP and serial port; RS232 described in equipment overview |
| Data management | MySQL database |
| Data outputs | EXCEL, TXT and charts |
| Included system items | PC software, USB concentrator and router |
| Input power | AC 380V, 7kW |
| Cabinet dimensions (W × D × H) | 900 × 600 × 1900mm |
| Case dimensions (W × D × H) | 450 × 300 × 170mm |
Selection Note
Important: The listed voltage, current and power limits must be evaluated together. Confirm the operating envelope and whether the quoted discharge-power rating applies per channel or per cabinet before defining the test recipe. Pack full-charge voltage must be checked rather than relying only on nominal voltage.
Frequently Asked Questions
What does this battery pack aging machine test?
It performs controlled charging and discharging to measure battery pack capacity and check charging and discharging protection cut-off behavior.
How should battery pack compatibility be checked?
Compare the pack's full-charge voltage and required test currents with the equipment's complete voltage, current and power operating limits. Confirm the usable voltage range, connector arrangement and protection settings with the technical team.
Which charging and discharging modes are available?
The supplied specifications list constant-current / constant-voltage charging and constant-current discharging, with mode-specific cut-off conditions.
Can test results be exported?
The supplied information lists EXCEL, TXT and chart outputs, with a MySQL database for data management.
How many channels are provided?
The cabinet is specified with seven channels. Confirm channel control, fixture requirements and the intended test recipe when planning production capacity.
What information is needed for a quotation?
Provide battery chemistry, full-charge voltage, capacity, charge/discharge current, test duration, daily production volume, required channel count, installation power supply and destination country.
